Walls

Viewing 5 posts - 1 through 5 (of 5 total)
  • Author
    Posts
  • #17733
    jjoyceJeffrey Joyce
    Participant

    When I insert a bump out or window box into a wall with heights less than the parent wall.  The resultant 3D view shows a gap or disruption above and or below the inserted wall, as if there is no siding or drywall.  Is there a parameter I am missing to prevent that behavior?  I have gotten around some of this behavior by inserting a second floor wall, but it seems like a parameter or switch might be a better solution.

    #17734
    jjoyceJeffrey Joyce
    Participant

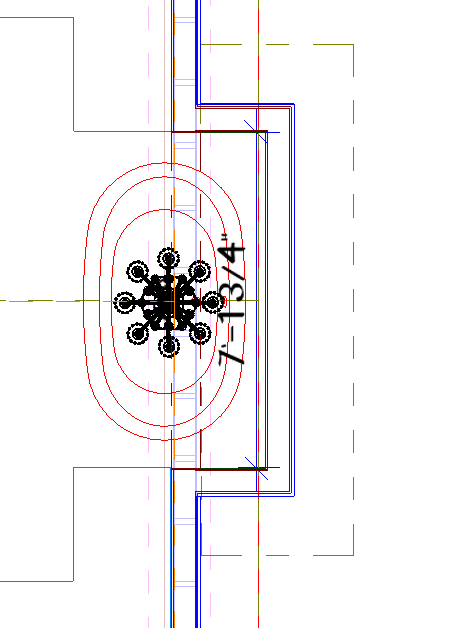

    Screenshot-2025-10-16-182003

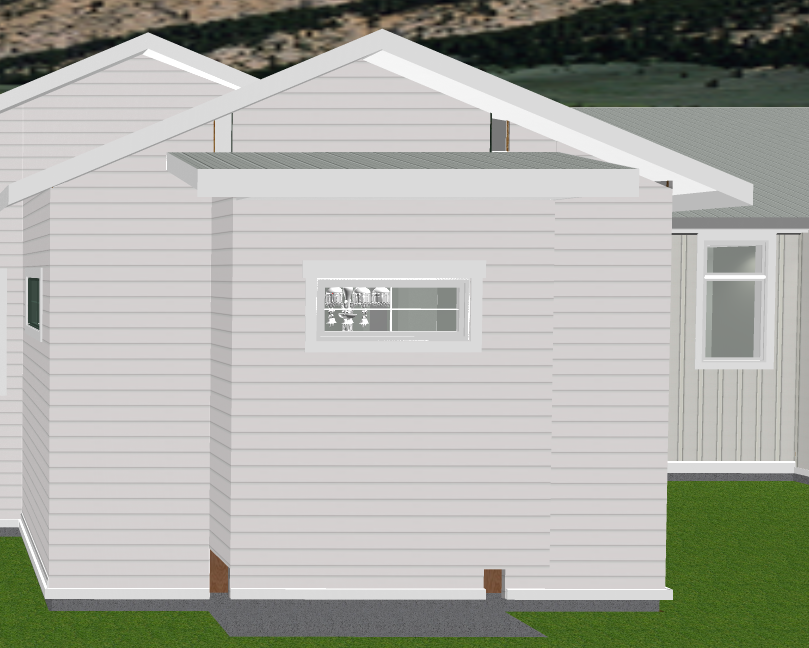

    3d view

    As you can see in the attachments the bump out side walls (2×6 cement siding) reserves space above & below in the main wall (2×6 cement siding)

    #17743
    FynrDzynrFynrDzynr
    Participant

    Add to WISHLIST please!

    This has been an issue as long as I can remember.

    #17745
    jjoyceJeffrey Joyce
    Participant

    Thanks!  Maybe it can be added to list of “Features” to fix in V18.

    #17759
    louisacolouisaco
    Moderator

    Hi, yes adding another wall above or bellow the window box on another building location is the best work around.
    I will be sure to add this to the feature wish list for you. Thank you.
